The BEAST summary - TLS, CBC, Countermeasures (Update 4)
| 0 comments ]

Lots of good information floating on the internet on the Proof of Concept (dubbed 'BEAST) against TLS 1.0 by Juliano Rizzo and Thai Duong at the Ekoparty.

This blog post will be continuously updated as new items and possible mitigation emerge.
 Subscribe to the RSS feed in case you are interested in updates.

Updates
TOC
  • Introduction to BEAST, TLS and CBC
  • Proposed countermeasures
  • Literature
  • Advisories
Introduction to BEAST, TLS and CBC
Juliano and Thai presented a Proof of Concept of an attack against TLS 1.0 is first documented in 2001 and discussed in papers in 2005 and 2006. It was thought to be an impractical attack back then and solved by adding empty fragments into the IV.

  • This issue was addressed in TLS 1.1 (2005-6) and OpenSSL by inserting  Empty Fragments into the message.
So why is this still and issue today ?
  • Secondly the OpenSSL option "SSL_OP_DONT_INSERT_EMPTY_FRAGMENTS" is activated by default as it caused incompatibilities with certain SSL stacks. Activating here means removing the mitigation against this attack. It is known that Tomcat, Apache mod_ssl, and Exim disable this feature in OpenSSL by default. Note : The proposed NSS patch (see countermeasures) adds empty application data records, which appears to be more compatible.
To quote Nelson Bolyard on why TLS 1.1 was not introduced sooner in the NSS stack (Currently used by Chrome, Firefox and various servers) :
"There is no significant market demand for TLS 1.1, so we've been working on improvements
in other areas,such as sharable DBs and full RFC 3280 compliance.  Once TLS 1.2 finally
becomes an RFC, we will work on that some time thereafter. We believe there will be a
demand for TLS 1.2 and some of the new cipher suites that require TLS 1.2 as a prerequisite."
Source

Source: TLS/SSL Compatibility Report 2011

 What is TLS ? What is CBC ?
Putting it in layman terms, TLS is the new name for SSL. SSL was developed by Netscape and was renamed and reworked into TLS when handed over to the IETF.

More details are available on Wikipedia - The post by the TOR team does an excellent job of explaining TLS, CBC and the attack itself, I highly recommend reading it especially if you are interested in the details, followed by "Security impact of the Rizzo/Duong CBC BEAST attack"

How does the Attack work ?
The attack has the CVE number CVE-2011-3389 - Thai himself explains the attack and how it was discovered in his blog post "Beast"



Proposed Countermeasures

Generic Server Recommendations :
  • Short-Term : Prioritize the RC4 Algorithm over CBC based ciphers (AES, DES). See the recommendations by PhoneFactor . (Note: Please take my recommendation and use this as a short term solution only, RC4 is not the strongest solution but the only non CBC cipher...)
  • Mid-Term : Enable and Offer TLS1.1 or TLS1.2 (Note: Firefox and chrome do not support TLS 1.1 and will fallback). For a compatibility overview look here
In the works :
  • The publication by Juliano and Thai should create the necessary incentive for Vendors to implement and use TLS1.1 and/or TLS 1.2. I will keep an eye on the usual suspects and collect all relevant support in the "TLS/SSL compatibility Report"
  • The Phone Factor (the guys behind the TLS session renegotiation vulnerability) propose prioritizing RC4 over AES or DES as a short term mitigation.
  • The chrome team has created patches to NSS fixing the issue client-side. (Splits non-empty Application Data Records, image below) - it is currently pushed to Chromium Beta channels for testing

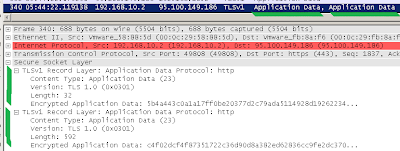

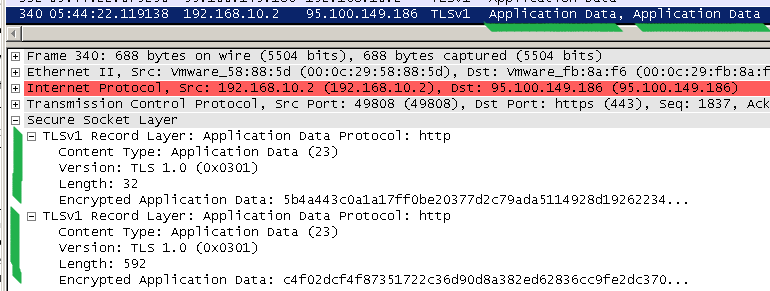

2 separate Application Data Records - Image courtesy of Adrian Dimcev
Literature
Advisories :



TLS/SSL hardening and compatibility Report 2011
| 0 comments ]

This is a cross post from the G-SEC blog

My professional and private commitments made it difficult to maintain a healthy blogging style, I am trying to get back to some blogging on a more regular basis.

Quick Update:
  • G-SEC does no longer operate on a commercial basis, for those that want to join the G-SEC Team and blogging platform drop me (Thierry) a mail.
  • I updated the "TLS/SSL hardening and compatibility Report" to 2011

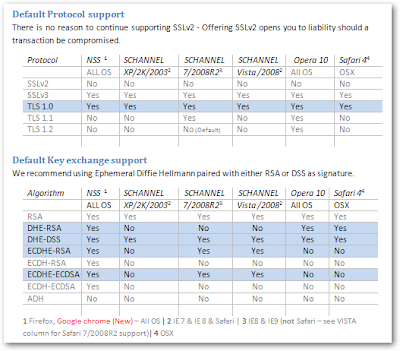

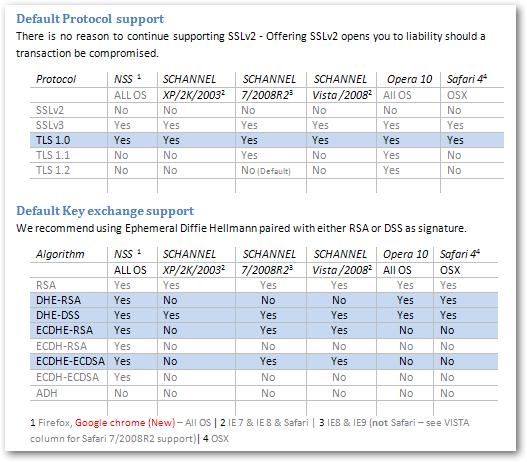

TLS/SSL hardening and compatibility Report 2011
Notable Changes:
  • Chrome moved from SCHANNEL to NSS, this move enhances the cipher-suites available to XP systems considerably (compared to IE) but loosing the TLS 1.1 and 1.2 capability of later Windows Operation Systems.
  • Added OPERA cipher-suites


Note: I have not re-tested all browsers completely, if you find errors please let me know. The report is available for download here
